How to Configure Advanced Rules (New UI) How to Configure Advanced Rules (New UI)

How to Configure Advanced Rules (New UI)

Gabriel Rosales Gabriel Rosales

Thank you for visiting our Qtrac Knowledge Base library. We hope the below article will assist you. Based on your inquiry, it looks like you are trying to configure advanced rules in the workflow. In order to accomplish this, you will need the following permissions:

Permissions Required:

Roles: Company Admin

  • Company Actions > Workflow Templates



This article explains how to access, review, and create Advanced Rules using the new interface.


How to Access Advanced Rules

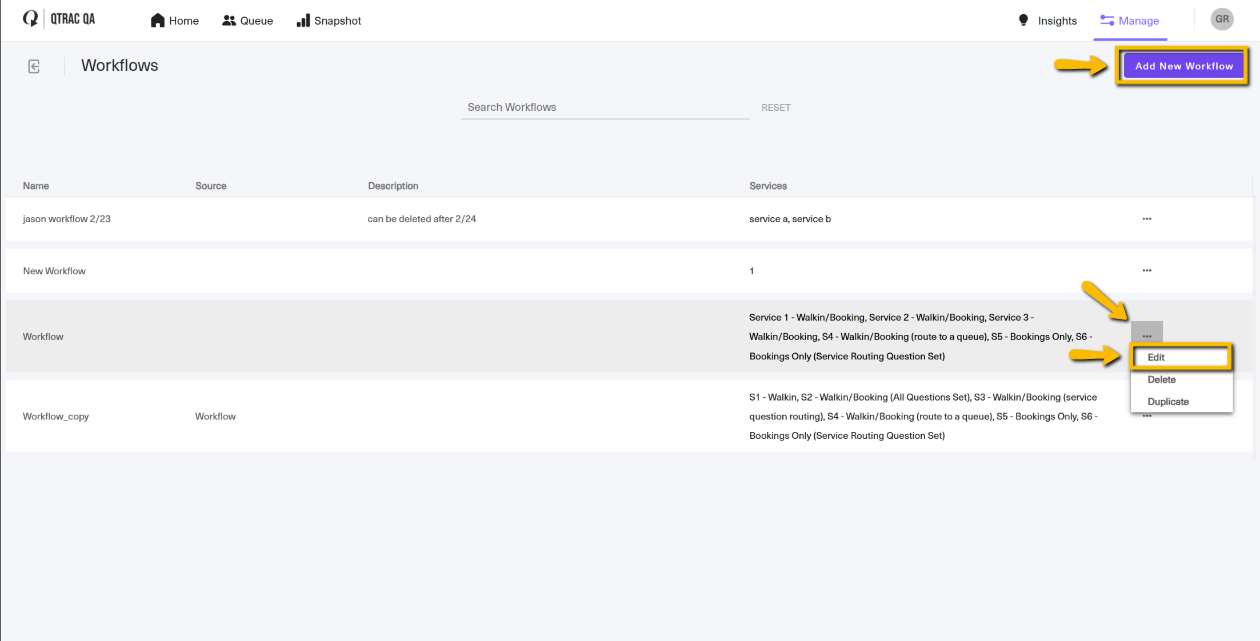

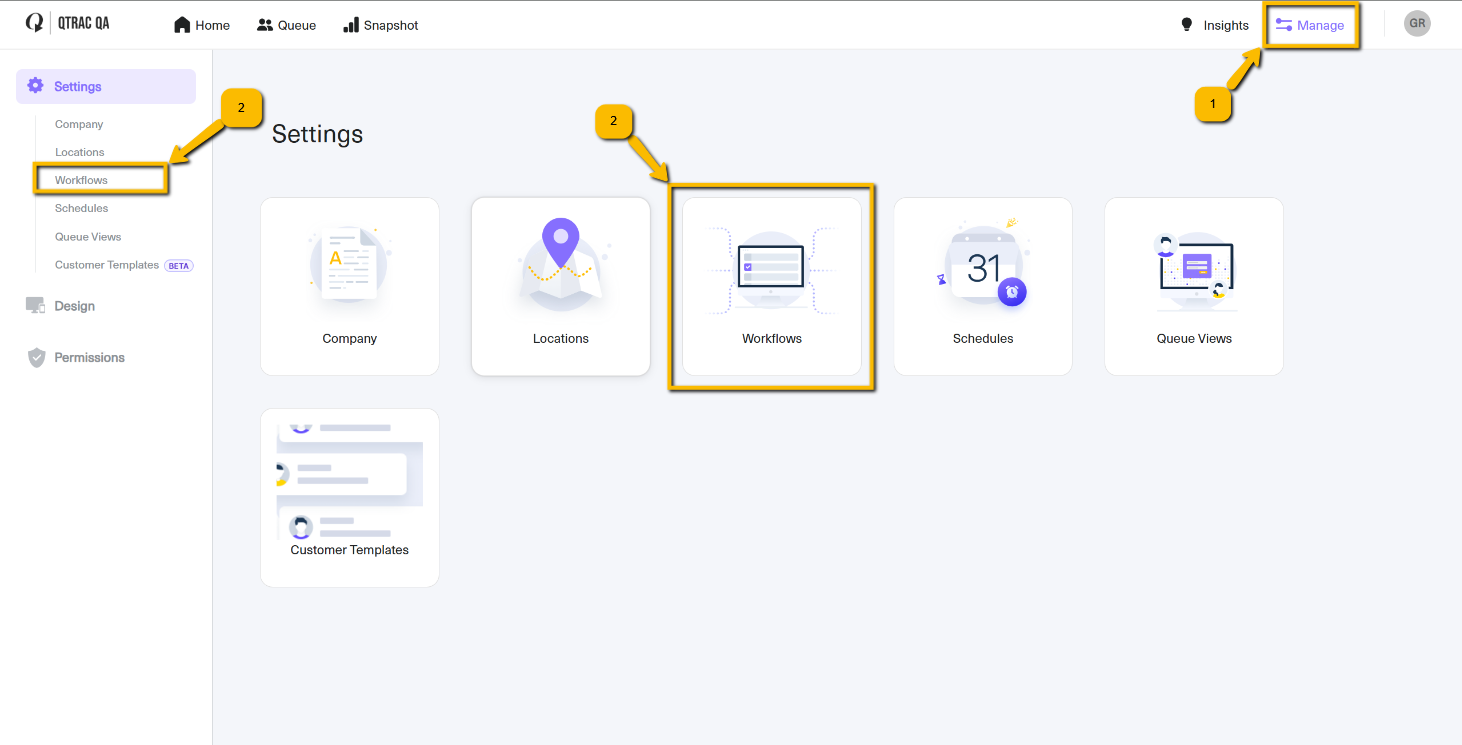

  1. From the Home page, click Manage.

  2. Select the Workflow you would like to edit, or create a new workflow.

    Add_Edit Workflow.png

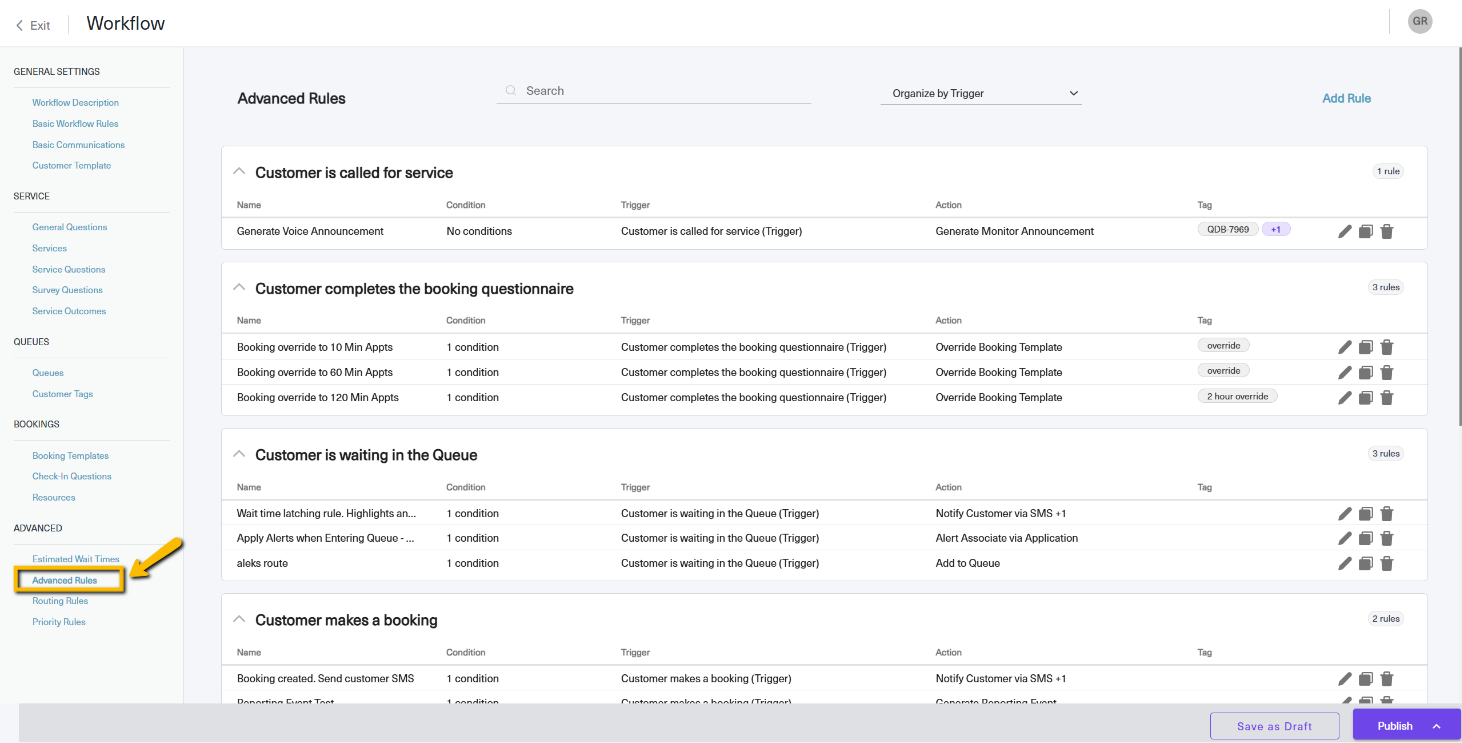

  3. In the left navigation panel, click Advanced Rules.
    advanced rules.png

You will now be taken to the Advanced Rules management screen.

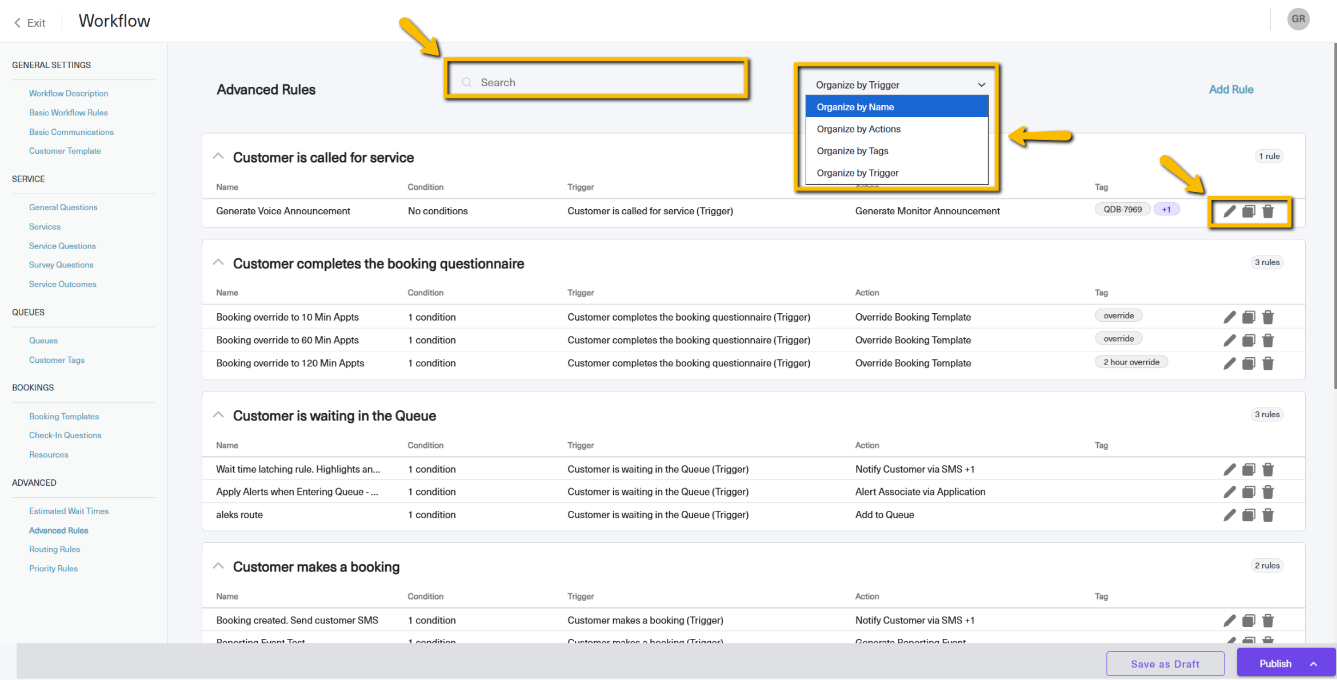

Overview of the New User Interface

The Advanced Rules page provides a centralized view of all rules configured for the selected workflow.

  • Existing rules are displayed in a list view.

  • By default, rules are grouped and organized by Trigger.

  • Use the search bar to quickly locate rules by keywords.

  • You can sort or organize the list by:

    • Name

    • Action

    • Tags

    • Trigger

  • Each rule includes options to Edit, Duplicate, or Delete.
    advanced rules UI.png

This layout makes it easier to review rule logic and maintain configurations.


How to Add a New Advanced Rule

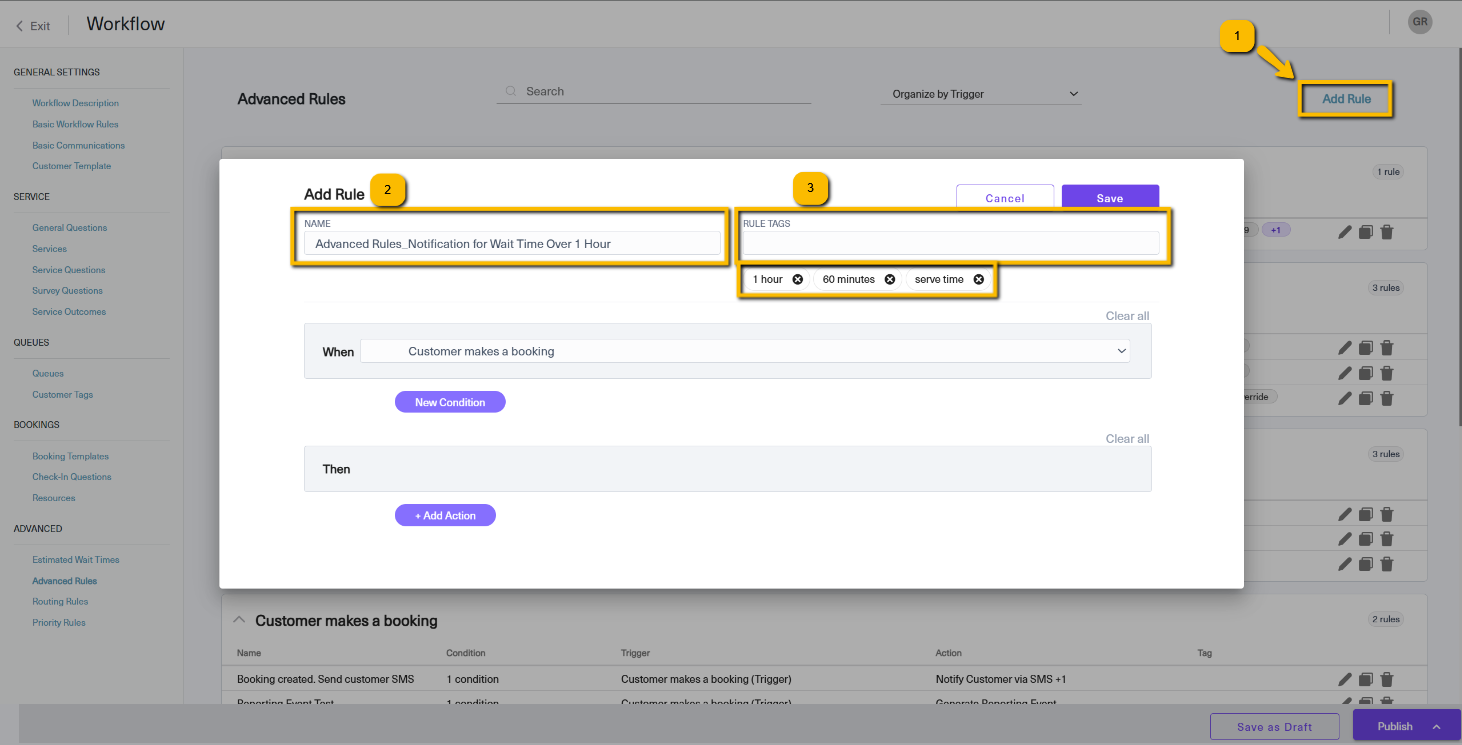

  1. Click Add Rule.

  2. Enter a Rule Name that clearly describes its purpose.

  3. Add Tags to help categorize the rule.

    • After typing a tag, press Enter or click outside the field to save it.
      add advanced rule.png

Define the Rule Logic

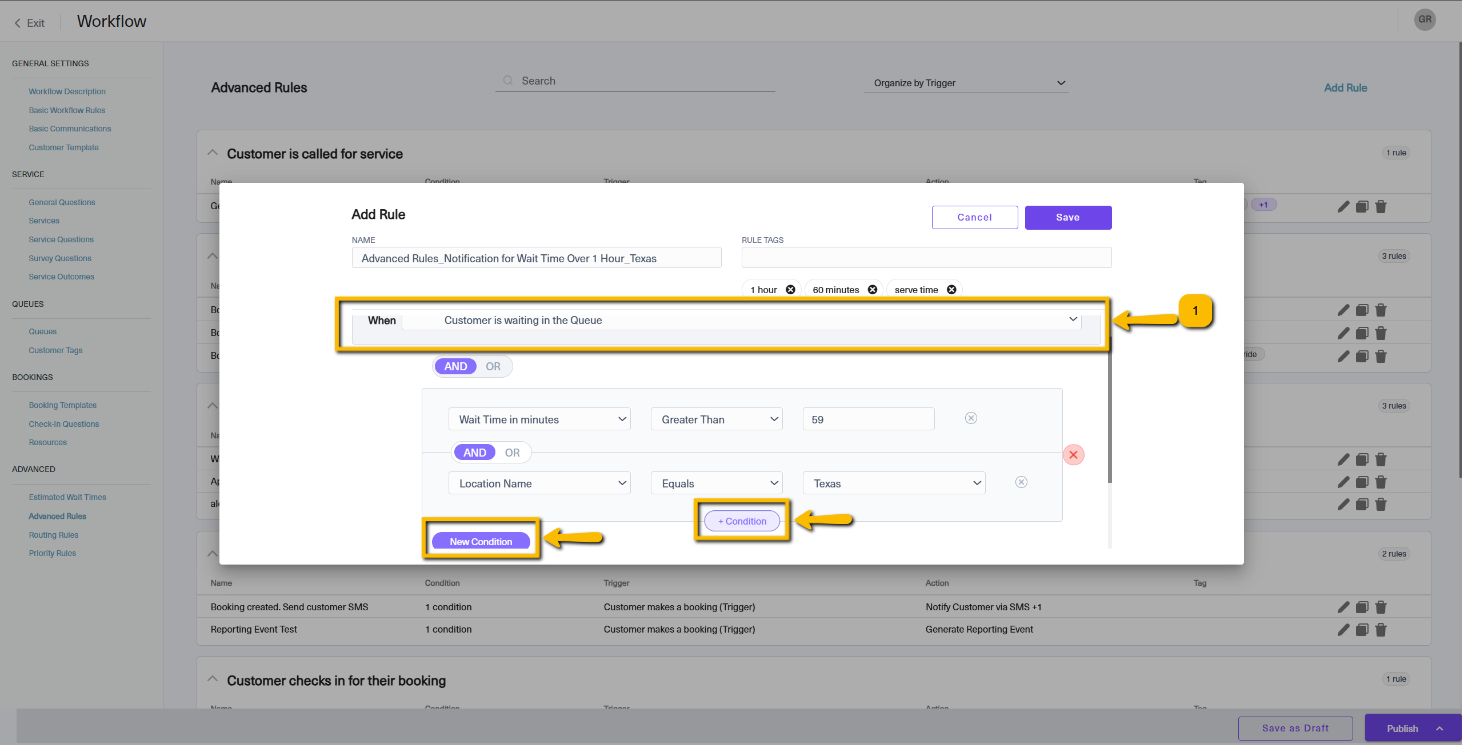

When (Trigger)

  • Select the event that will initiate the rule.

Conditions

  • Add one or more conditions to determine when the rule should run.

  • Use the +Condition button to add more granular logic and specificity.
    advanced rules trigger.png

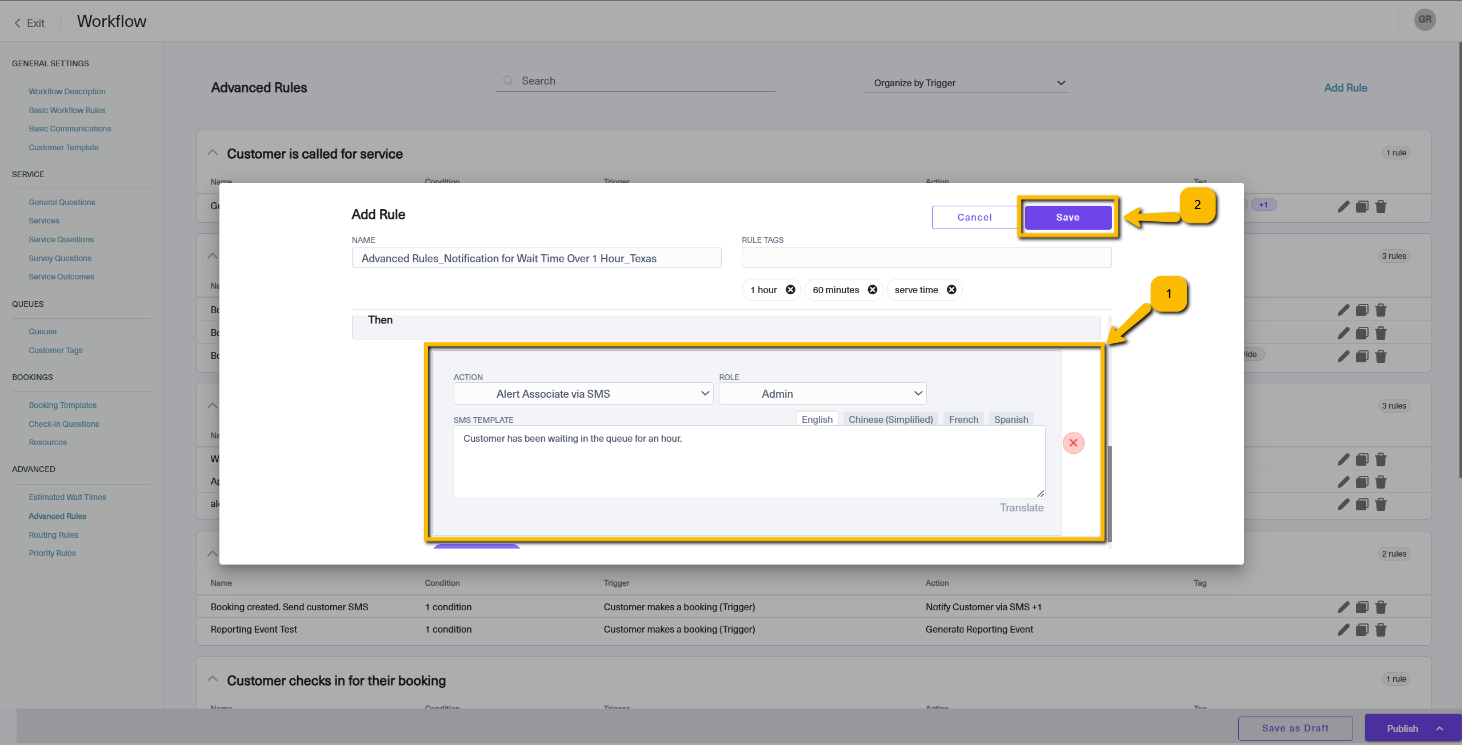

Then (Action)

  • Choose the action that should occur when the trigger and conditions are met.

  • Select from the available list of supported actions.

  1. Click Save to store the rule.
    advanced rules action.png


Publishing and Applying Changes

After creating or editing rules:

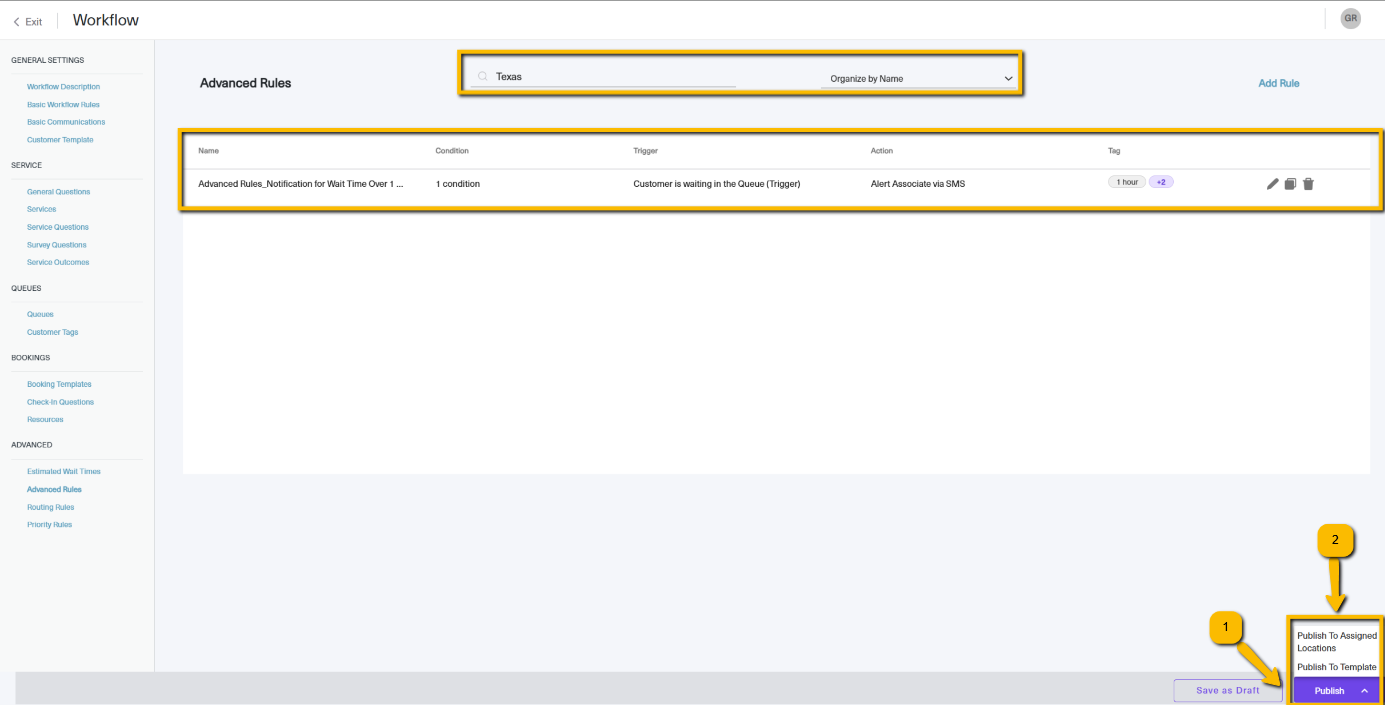

  1. Click Publish in the bottom-right corner to apply the changes.

  2. Once published, the new rule will appear in the Advanced Rules list and will be active within the workflow.
    advanced rules publish.png


Summary

The new Advanced Rules interface provides improved visibility, organization, and control over workflow automation. With enhanced search, sorting, and rule-building tools, administrators can quickly create precise logic and maintain configurations with confidence.



We hope this article helped you out with your inquiry.

If you still have any questions, please feel free to get in touch with our Qtrac Help Desk.
